Rear hub

Postby Jeremiah31 » Tue May 11, 2021 4:15 am

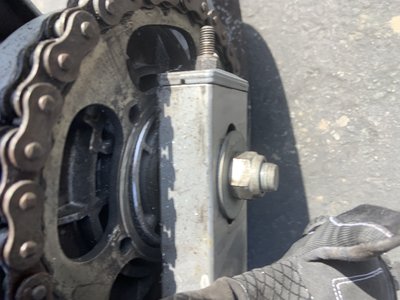

I just bought a 1996 mz scorpion 660 sport a couple of weeks ago and i was out riding today and the rear sprocket came off the hub, look like all the bolts just snapped off. This is my first bike and i don’t know anything about bikes. But I’m learning, looks like i need a new hub. Anyone possibly know where i can get one ASAP or know of any other bikes that has the same I’d be able to use on the bike, I’m currently living in south Cali and closest people i know is 1200 miles from me the bike is my only transportation rn so need to get this fixed ASAP.
Attachments
Jeremiah31

Posts: 6
Joined: Tue May 11, 2021 4:03 am

Re: Rear hub

Postby droy » Tue May 11, 2021 8:16 am

wow - never see that before.

That said - did the bolts just back out of the read hub threaded hole?? I've seen one bolt back off before - it will rub on the inside of the swingarm.

can you post a few more pictures of the bolt holes??
[b]Gang of Four
1997 Replica
1995 Sport (Converted to Tour)
1996 Sport (Café Racer Project)
1996 Tour (Track Day Project)
Montclair, NJ USA
droy

Posts: 359
Joined: Sun Jul 31, 2005 7:52 am

Re: Rear hub

Postby droy » Tue May 11, 2021 8:16 am

wow - never see that before.

That said - did the bolts just back out of the read hub threaded hole?? I've seen one bolt back off before - it will rub on the inside of the swingarm.

can you post a few more pictures of the bolt holes??
[b]Gang of Four
1997 Replica
1995 Sport (Converted to Tour)
1996 Sport (Café Racer Project)
1996 Tour (Track Day Project)
Montclair, NJ USA
droy

Posts: 359
Joined: Sun Jul 31, 2005 7:52 am

Re: Rear hub

Postby Puffs » Tue May 11, 2021 10:55 am

Following a biased and flawed moderator choice (someone posting aggressive personal attacks is rewarded, while my technical posts are removed - behind my back & without any justification!), I have withdrawn from this forum.
Last edited by Puffs on Wed Apr 05, 2023 4:47 am, edited 1 time in total.
User avatar
Puffs

Posts: 2007
Joined: Tue Jan 16, 2018 11:20 am
Location: Ardennes, Belgium.

Re: Rear hub

Postby breakwellmz » Tue May 11, 2021 3:34 pm

Hi.
That`s rather rash advice to some who admits to having little experience especially without seeing what damage the hub might have, he will also require high tensile bolts as replacements as well if it proves to be that simple.
Cheers.
breakwellmz

Posts: 817
Joined: Sun Dec 16, 2007 7:11 am
Location: SW England

Re: Rear hub

Postby Jeremiah31 » Tue May 11, 2021 3:39 pm

One bolt snapped off for sure. But all the bolts came off somehow, the bikes parked at a Costco parking lot rn but I’m gonna try to get some more bolts for it for now and see if that will at least let me get it to where i need to get to until i can find a new part I’m not sure what caused it, maybe the person i got it from hed the chain to tight. But rode perfectly until then it’s a great running bike just the fairings are tore to hell and the wind screens missing but hopefully I’ll be able to get it looking good again eventually. Thanks for the input guys I’ll post more pics of the issue here in a few I’m getting ready to head over now
Jeremiah31

Posts: 6
Joined: Tue May 11, 2021 4:03 am

Re: Rear hub

Postby droy » Tue May 11, 2021 4:27 pm

use blue thread lock on all those bolts

Let us know how it turns out
[b]Gang of Four
1997 Replica
1995 Sport (Converted to Tour)
1996 Sport (Café Racer Project)
1996 Tour (Track Day Project)
Montclair, NJ USA
droy

Posts: 359
Joined: Sun Jul 31, 2005 7:52 am

Re: Rear hub

Postby Jeremiah31 » Tue May 11, 2021 8:29 pm

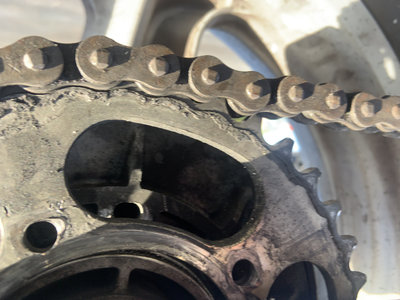

Here’s another pic
Attachments
Jeremiah31

Posts: 6
Joined: Tue May 11, 2021 4:03 am

Re: Rear hub

Postby droy » Tue May 11, 2021 8:55 pm

get some 8mm bolts in there (these are some "captive" nuts in the hub that they thread into). you can see that the sprocket holes are oblong so the bolts been loose for some time.

Also at a minimum get some lube on that chain or ideally replace the chain and both sprocket . Its long overdue - that sprocket is very worn and chain doesn't have much life left.

The folks here can point to replacement parts if your having trouble.

Good luck
[b]Gang of Four
1997 Replica
1995 Sport (Converted to Tour)
1996 Sport (Café Racer Project)
1996 Tour (Track Day Project)
Montclair, NJ USA
droy

Posts: 359
Joined: Sun Jul 31, 2005 7:52 am

Re: Rear hub

Postby DAVID THOMPSON » Tue May 11, 2021 10:42 pm

those captive nuts may not be totally captive when the hub is out of the bike
and if so may need replaced also if its been loose fore a while

and the bearings need checked and some repacking or replacements

looks rode hard and put away very wet and abused
Dave 2002 MZ RT125+1995 Saxon Tour(500cc)
1997 MZ 660 Traveller+6/13/09 WV USA
"IN the end times the IDIOTS will be in charge
of everything"
"I like the road less traveled if it's PAVED!"
wd8cyv at yahoo dot com
User avatar
DAVID THOMPSON
Moderator

Posts: 5161
Joined: Sun Nov 23, 2003 11:01 am
Location: Parkersburg, West Virginia USA .questions answered MZ 95 up, BMW 1953 to 1979 and ham radio WD8CYV

Re: Rear hub

Postby Jeremiah31 » Wed May 12, 2021 2:01 am

So the new nuts and bolts worked thankfully, ya it’s a work in progress i just got it a couple weeks ago. Paid only $900 and an iPad for it, only needs small things fixed mechanically wise runs pretty good starts every time,but cosmetics is a different story haha. Thanks for all the help and advise, also I’m going to have someone check the back wheel for me tomorrow to make sure i put it on straight and chains not too tight or loose
Jeremiah31

Posts: 6
Joined: Tue May 11, 2021 4:03 am

Re: Rear hub

Postby Jeremiah31 » Wed May 12, 2021 2:03 am

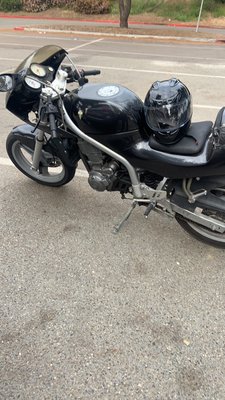

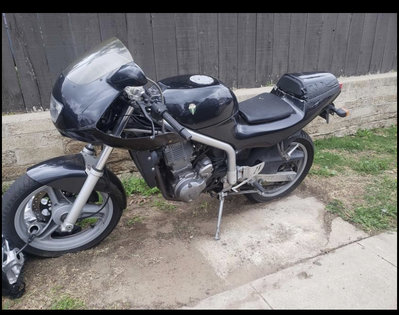

Pics
Attachments
Jeremiah31

Posts: 6
Joined: Tue May 11, 2021 4:03 am

Re: Rear hub

Postby breakwellmz » Wed May 12, 2021 2:55 am

Fixed already?
I think you got off lightly there!
breakwellmz

Posts: 817
Joined: Sun Dec 16, 2007 7:11 am
Location: SW England

Re: Rear hub

Postby Puffs » Wed May 12, 2021 4:47 am

breakwellmz wrote:Hi.
That`s rather rash advice to some who admits to having little experience especially without seeing what damage the hub might have, he will also require high tensile bolts as replacements as well if it proves to be that simple.
Cheers.


Is it? Is it really any more difficult than getting a few bolts in there & ride the thing home? Is the solution dependent on the experience of the owner? If the OP doesn't feel confident himself, maybe someone else could do it. Anyway, if the OP feels offended, my apologies.

You ask advice. Then harvest opinions: use what you like, ignore what you don't. But always stay in charge yourself.

Come home, take the wheel out check the bearings, replace the nuts. Yes use thread lock, maybe in combination with new locking/non-slipping nuts (which I now learn are called 'captive'). High tensile bolts? Yes, as anyone can see (see links to miraculis.de elsewhere on this forum), the book says "DIN 933 M8x35-10.9-A4K hexagonal bolt" so that seems an M8 bolt of 35mm long, of the 10.9 class (a yield strength of 940 and tensile strength of 1040 MPa, anyway, pretty strong). I don't know what 'A4K' means, but 'A4' means stainless, so 'A4K' may indicate a surface treatment to prevent corrosion? Frankly, any good bolt will do IMO.

Adequate tension in the bolts should lock the sprocket onto the hub, but you might consider drilling the outside of the oval holes round & fitting bushes. Yes check the chain & sprockets for wear & replace as a set if required. Check the chain tension when the 3 axles (F sprocket, swingarm axle, wheel axle) are on 1 straight line, that's when the distance is longest & the chain is tightest (with the chain at the tightest position, if there is any).

I think for about $1000 you found yourself a magnificent bike, congratulations! Enjoy it, but yes, it will need work, older bikes always do.
User avatar
Puffs

Posts: 2007
Joined: Tue Jan 16, 2018 11:20 am
Location: Ardennes, Belgium.

Re: Rear hub

Postby Jeremiah31 » Thu May 13, 2021 2:31 am

Yes i done all of that took it apart checked it out all looked good, i then drove it about 50 miles that night then maybe another 50-60 last couple of days all’s good just need to get new chain and sprockets ASAP cause i agree they look super worn but I’m taking everyone’s advice seriously and fixing things up here and there, going to get all the mechanics worked out before i attempt anything else,
Appreciate all the help y’all are awesome
Thanks!!
Jeremiah31

Posts: 6
Joined: Tue May 11, 2021 4:03 am
